      The clean rooms, laboratories or other high-standard spaces in the field of fine industry require strict control of temperature and humidity; However, the dangerous and explosive volatile gases may be produced in some areas, so the temperature and humidity sensor needs to have explosion-proof function.

          TH160EX is specially used for the temperature and humidity measurement in explosive and hazardous gas environments. In addition to temperature and humidity parameters, it can also measure other humidity parameters such as dew point, frost point, enthalpy value. Especially for the biopharmaceutical clean room O3 or VHP sterile environment, the probe can be equipped with VHP filter PF04, which micropores are filled with the MnO2 composite catalyst with the particle diameter of about 10um; When in touch with the filter, VHP or O3 will be decomposed into H2O and O2 to achieve the purpose of protecting the probe and humidity-sensitive element.

      Biopharmaceutical clean rooms, laboratories or other high-standard spaces require strict control of temperature and humidity; However, the dangerous and explosive volatile gases may be produced in some areas, so the temperature and humidity sensor needs to have explosion-proof function.

  TH160EX-E adopts the wall-mounted structure of dust-proof and ash-proof, which is specifically used for the temperature and humidity monitoring of the explosive and hazardous gas environment in the biopharmaceutical clean rooms. The signal cable is connected through the external terminal to facilitate equipment maintenance.

         For the biopharmaceutical clean room O3 or VHP sterile environment, the probe can be equipped with VHP filter PF04, which micropores are filled with the MnO2 composite catalyst with the particle diameter of about 10um; When in touch with the filter, VHP or O3 will be decomposed into H2O and O2 to achieve the purpose of protecting the probe and humidity-sensitive element.

The clean rooms, laboratories or other high-standard spaces in the field of clean industry require strict control of environmental temperature and humidity, such as electronic semiconductor and biopharmaceutical clean rooms.

TH120 temperature and humidity transmitter is specially used for temperature and humidity measurement in this environment. In addition to measuring temperature and humidity parameters, it can also measure other humidity parameters such as dew point, frost point, enthalpy value.

Especially for the biopharmaceutical clean room O3 or VHP sterile environment, the temperature and humidity probe of TH120 can be equipped with the specialized filter PF04 for H202 environment, which micropores are filled with the MnO2 composite catalyst with the particle diameter of about 10um; When in touch with the filter, VHP or O3 will be decomposed into H2O and O2 to achieve the purpose of protecting the probe and humidity-sensitive element.

    In order to facilitate field equipment maintenance, TH120 is also equipped with interchangeable digital probes and digital reference probes for analog output channel accuracy verification. There are two reference probes, one of which has a fixed output of 90%RH/5℃, and the other has a fixed output of 10%RH/45℃.

The clean rooms and laboratories in the biopharmaceutical industry need to strictly control the ambient temperature and humidity, and require the structure of the on-site installation instrument to prevent dust and ash. TH120-E adopts the wall-mounted installation structure of dust and ash prevention, and the signal cable is connected through the external terminal to facilitate equipment maintenance. It is suitable for the temperature and humidity monitoring of the biopharmaceutical EMS system. For the O3 or VHP sterile environment, the temperature and humidity probe can be equipped with H202 environment-specific filter PF04. The microholes of the filter are filled with MnO2 composite catalyst with the particle diameter of about 10um; When in touch with the filter, VHP or O3 will be decomposed into H2O and O2 to achieve the purpose of protecting the probe and humidity-sensitive element.

    In order to facilitate field equipment maintenance, the TH120 is also equipped with interchangeable digital probes and digital reference probes for analog output channel accuracy verification. There are two reference probes, one of which has a fixed output of 90%RH/5℃, and the other has a fixed output of 10%RH/45℃. In addition, the probe, extension probe rod and signal cable can also be equipped with thread combination structure, which is convenient for regular maintenance and calibration of the probe.

The wind turbine sets work in the outdoors, and the equipment operation environment is very harsh. There is often dust, high humidity condensation, salt fog (offshore wind power) and other conditions. The devices running in such an environment for a long time will be corroded, and in serious cases, the devices will be damaged and failed. The biggest equipment operation risk is that the temperature difference between day and night causes condensation inside the electrical cabinet and equipment, resulting in short circuit and accident risk of electrical equipment or cable, so it is necessary to monitor and control the temperature and humidity environment in the electrical cabinet. The TH112 temperature and humidity transmitter is specifically designed for the reliable and stable operation of wind turbine sets.

The sensitive elements of TH112 adopt high molecular film humidity-sensitive capacitor and PT1000 temperature-sensitive resistor, which use special breathable coating and circuit injection packaging process, to ensure that the probe can withstand dust pollution, high humidity condensation, salt fog and other harsh working environment, while having good long-term stability and precision.

      TH112 uses split probe type installation structure with the cable up to 3m, and the field display function is optional. The transmitter body adapts to the spring rail buckle, which meets the EN50022 rail installation specification and can be installed on the rail with standard width of 35mm, so it is convenient for field installation and later maintenance.

The environment of industrial HVAC system is relatively harsh, and the fresh air pipe often has dust and high humidity condensation, which puts forward higher requirements for the reliable measurement of temperature and humidity sensors. The TH110 temperature and humidity transmitter is applied to the measurement of temperature and humidity parameters under such harsh conditions.

The sensitive elements of TH110 adopt high molecular film humidity-sensitive capacitor and PT1000 temperature-sensitive resistor, which use special breathable coating and circuit injection packaging process, to ensure that the probe can withstand dust pollution and high humidity condensation environment, while having good long-term stability and precision.

       In some specific environments, the TH110 can be equipped with appropriate filters to achieve stable measurement results. For example, in the O3 or VHP sterile environment, the dedicated filter PF04 can be selected for VHP environment. The micropores of the filter are filled with MnO2 composite catalyst with the particle diameter of about 10um; When in touch with the filter, VHP or O3 will be decomposed into H2O and O2 to protect the probe and humidity-sensitive element while ensuring measurement precision.

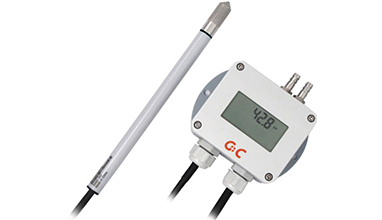

       The clean rooms, laboratories or other high-standard spaces in the field of clean industry require strict control of environmental temperature, humidity and pressure difference, such as electronic semiconductor and biopharmaceutical clean rooms. THP130 is a transmitter with temperature, humidity and pressure difference parameters. The temperature and humidity probe is a split-type structure, and the pressure difference connector is placed on the upper end of the instrument, which can output temperature, humidity and pressure difference signals at the same time. It is not only convenient for on-site installation, aut also saves cost, and provides a new solution for the measurement of clean industrial HVAC environment parameters.

      THP130 can select display module, RS485 or 4 ... 20mA output signal. Especially for the biopharmaceutical clean room O3 or VHP sterile environment, the temperature and humidity probe of THP130 can be equipped with the specialized filter PF04 for H202 environment, which micropores are filled with the MnO2 composite catalyst with the particle diameter of about 10um; When in touch with the filter, VHP or O3 will be decomposed into H2O and O2 to achieve the purpose of protecting the probe and humidity-sensitive element.
